ExaPad Mini Veterinary ultrasound scanner

ExaPad Mini Veterinary ultrasound scanner

Ref. 90-2440KIT

The ExaPad Mini is a compact touchscreen ultrasound imaging system from IMV imaging, featuring high quality imaging, ease of use and robustness, making it ideal for equine vets and mixed practice.

Ref. 90-2440KIT

Overview

The ExaPad Mini is a robust ultrasound system that has been designed, developed and manufactured specifically for the veterinarian and is suitable for equine and mixed practice use. The ExaPad Mini can be used for musculoskeletal, abdominal, reproductive and cardiac imaging.

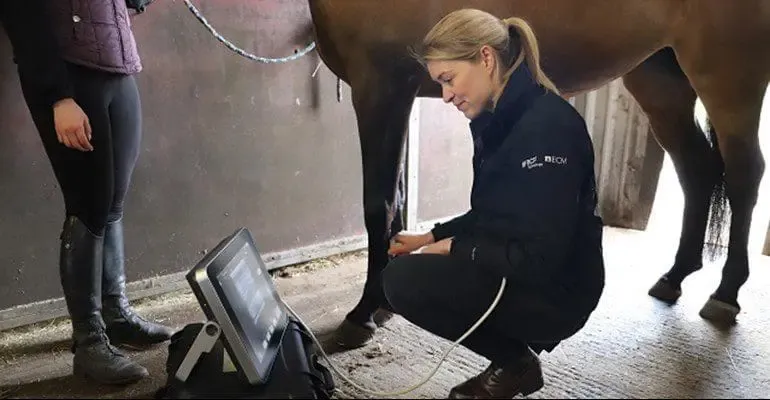

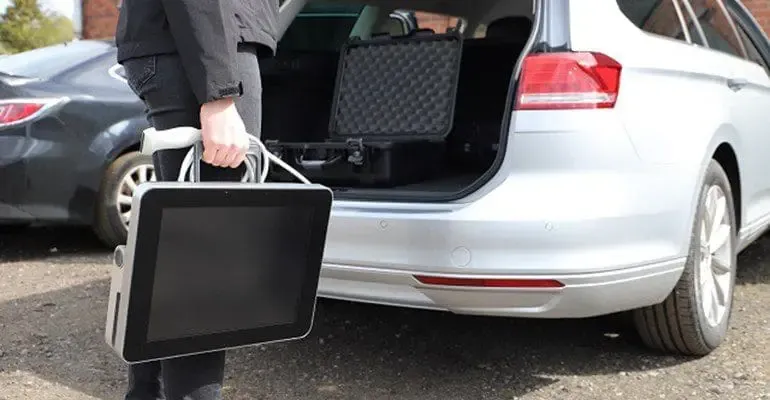

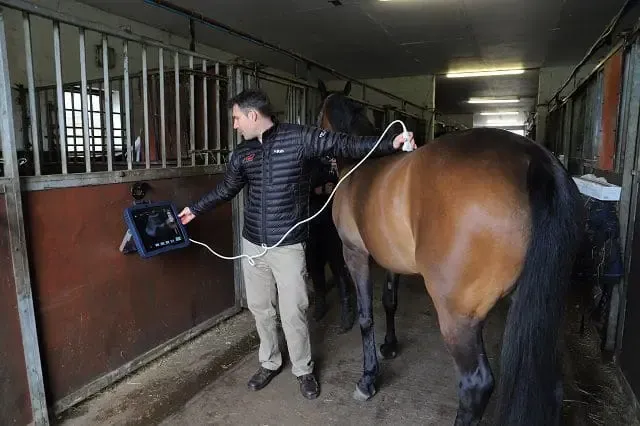

  • Great portability, 1.5 hour battery life, long cables and a wide range of probes enable ease of use for working around horses in the stable or practice.
  • 12 inch touchscreen interface.
  • The streamlined interface allows for easy annotation of images and the ability to perform detailed measurements.
  • Patient files and reports can be generated, and a pdf output of the report provided. Patient files, reports, annotations and specific measurements are all adapted to veterinary work.
  • The EchoTouch interface presents only the necessary scanner functions on the screen, making the work of the user faster and more efficient. Advanced settings remain simple to access.
  • With the EchoPad app installed on your iPad, you can control your ExaPad ultrasound scanner remotely. Your own presets, saved in your iPad can be used on the ExaPad.

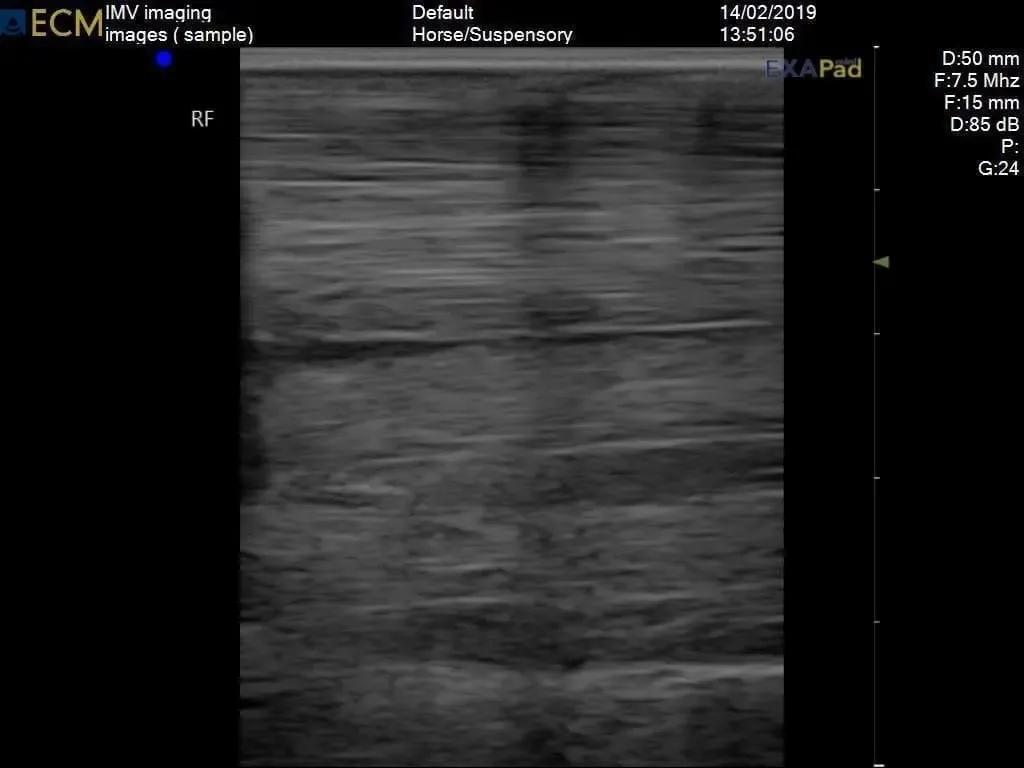

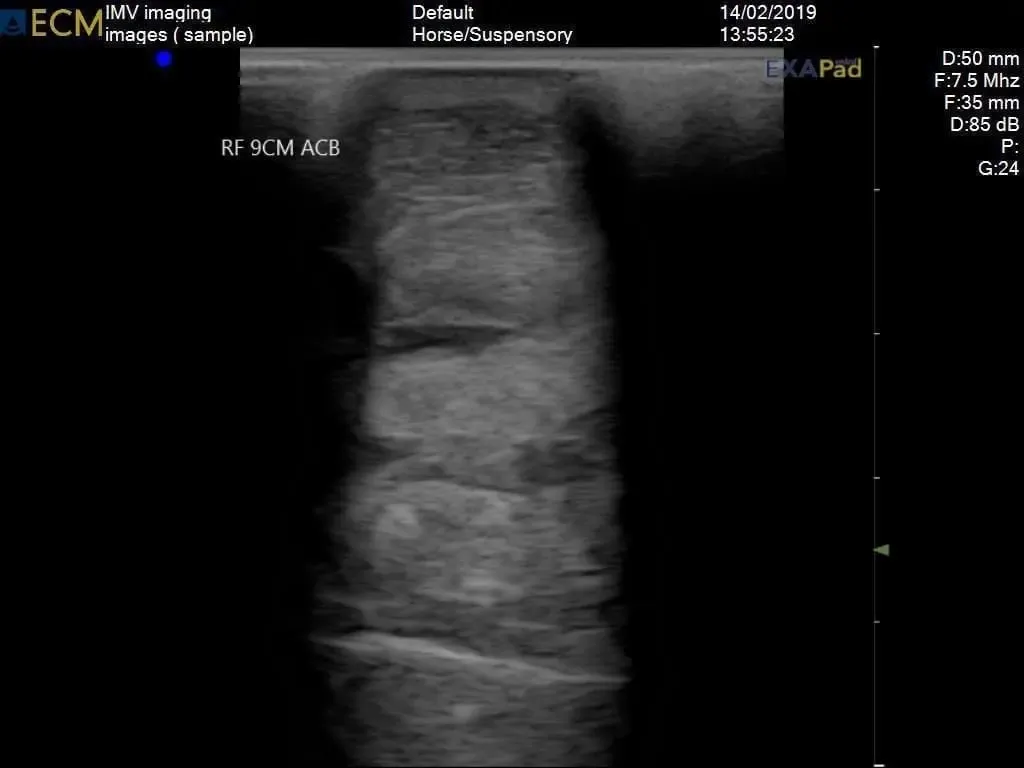

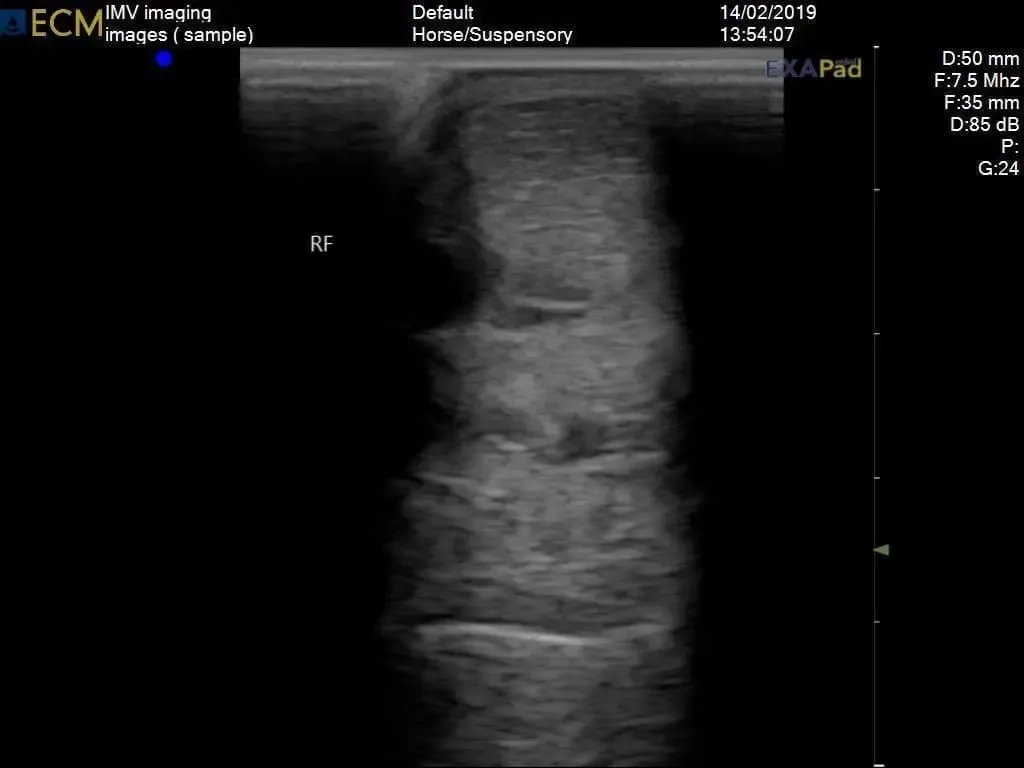

Clinical Images

Technical Specifications

System type (portable/cart) Portable
Console form (clam shell/touchscreen) Touchscreen
Number of probe connectors on console 1
Screen size 12 inch
Optional trolley
Multi-probe compatibility on trolley Y x2
Colour Doppler
Pulse Wave Doppler
Continuous Wave Doppler
ECG Opt
Width (mm) 320
Depth (mm) 58
Height (mm) 250
Weight (kg) 4
Battery included?
Battery life (mins)
Warranty 90
Small animal
Exotic
Equine
Bovine

Accessories

For Exapad Mini can be paired with LR760V rectal probe to provide a great solution for equine repro vets. The system can also be used with a dedicated microconvex based OPU probe for Ovum Pick Up work. The Exapad Mini can utilise the L738V linear and C360A convex probes to provide a great solution for tendon and abdominal scanning studies.

The Exapad Mini scanner can be used with a portable trolley making it perfect for use in practice.

Probe introducers for ImaGo, ExaGo and ExaPad

Designed in-house, the OPU gun comes in two different sizes for use on cows and mares o More information

Related products

ExaPad Veterinary ultrasound scanner

The ExaPad is a compact touchscreen ultrasound imaging system from IMV imaging, featuri More information

Exapad Micro Veterinary ultrasound scanner

“A New View on Ultrasound”Experience unparalleled performance and flexibility wi More information

ExaGo Veterinary ultrasound scanner

Reliable and robust, the ExaGo will quickly and easily provide you with high-quality ul More information

Troubleshooting


You have vertical lines on your ultrasound image

Vertical lines can be caused by different things:

  1. Broken crystals on the lens of your probe
  2. Cut wire inside the probe cable
  3. Dirty probe connector
  4. Bent connector cam (on the probe)
  5. Bent pins on the connector (on the device)

There is not much that can be done with the first two items, however most of the time, vertical lines are due to a bad connection between the probe connector and the device. So, make sure the connector is clean on both sides (probe and device), that the connector cam on the probe is not bent, and that the pins on the device’s side are not bent.

Your patients have disappeared from your patient list

No Worries! , your patients and images are not lost, if this happens, please contact your local dealer, we will explain how to run a little program on your ultrasound device that will retrieve all your patients and put them back in the patient list.

You have difficulties to perform an upgrade

Make sure the USB key provided for the upgrade is well connected to the scanner

To make sure the USB key is well recognized by the device go to the Export section and check if your USB key is visible in the under the “export to” tab.

Make sure the directory contained on the USB key is called: UPGRADE_96CX, if not, the Exapad will not recognize the USB key as an upgrade key.

The scanner won’t switch on

Make sure the battery is charged. Plug the scanner to an electrical outlet and check if the yellow light is on. If they yellow light does not turn on, then your device is not charging and your battery may be empty, in this case, your power supply may have a problem.

Remove the battery, plug the charger and see if the device starts without the battery. If it does, then your battery may be defective.

Your ultrasound scanner did not start and displays a blue recovery screen

Contact your local dealer to ask if the system needs to be returned for service. In most cases, just a reboot will be enough to restart your ultrasound system.

  1. Switch the system off with the back switch
  2. Plug the system to an electric plug
  3. Wait for 5 minutes
  4. Restart the scanner, the scanner will take longer than usual to start.

*For this not to happen, make sure you switch off the device with the front switch, higher left corner.

What do the power lights mean?

  1. Green: system is powered on
  2. Yellow: System is charging
  3. Blue: Computer working (blinking)

My equipment is not working, what do I do now?

If you have a problem with your imaging system, call our team on Tel: +44 (0)1506 460 023. You may also find some useful information in our product support area of this site.
