Mindray DP-30Vet V3 Veterinary ultrasound scanner

Mindray DP-30Vet V3 Veterinary ultrasound scanner

Ref. DP-30Vet-V3

Our entry level lightweight, portable black and white ultrasound scanner is an ideal first system for first opinion small animal vets or equine vets doing basic repro work.

Ref. DP-30Vet-V3

Overview

The DP-30 is a compact black and white ultrasound system that will allow you to do much more than just pregnancy scans but at an affordable price.

Scan and make measurements in both B-mode and M-mode. Label up imaging studies with pre-defined or custom annotations. Provided with a wide range of veterinary optimised imaging presets Power Doppler imaging to identify blood flow in the abdomen Wide range of affordable probes for multiple imaging applications Easy review and export images through the intuitive iStation interface

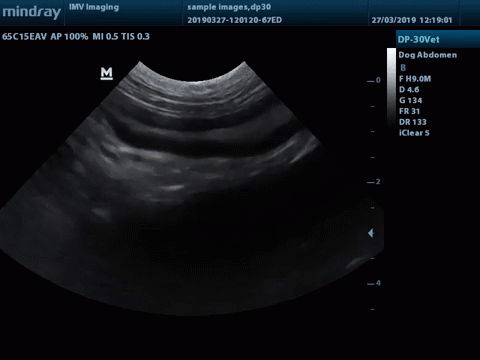

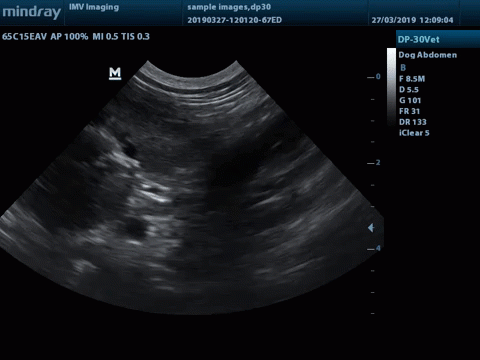

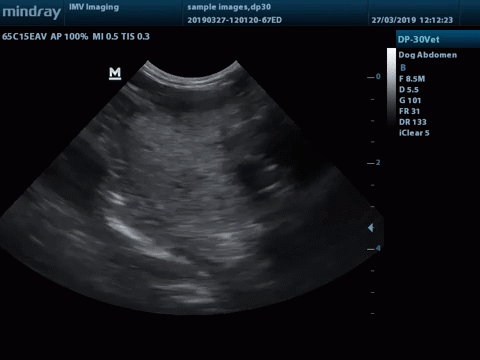

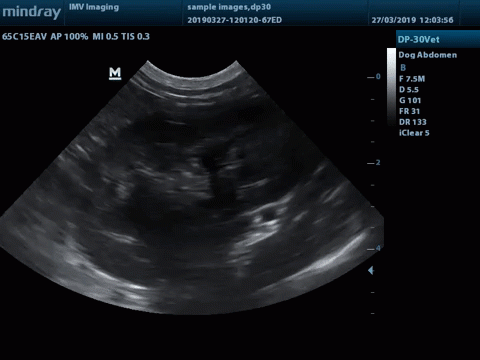

Clinical Images

Technical Specifications

System type (portable/cart) Portable
Console form (clam shell/touchscreen) Flip down
Number of probe connectors on console 2
Screen Size 12.1 inch
Optional trolley
Multi-probe compatibility on trolley
Colour Doppler
Pulse Wave Doppler
Continuous Wave Doppler
ECG
Width (mm) 290
Depth (mm) 167
Height (mm) 350
AED 5.6
Battery included? Opt
Battery life (mins) 100
Warranty 1 year
Small animal
Exotic
Equine
Bovine

Accessories

The DP-30Vet with a single micro-convex probe (DP-65C15 5.0-8.5 MHz 15mm radius) can be used to perform abdominal and cardiac examinations on a wide range of species including dogs, cats, rabbits and reptiles.

The DP-75L50 5.0-10.0 MHz 50mm footprint probe can be used to perform pregnancy scans making this an affordable option for equine repro.
