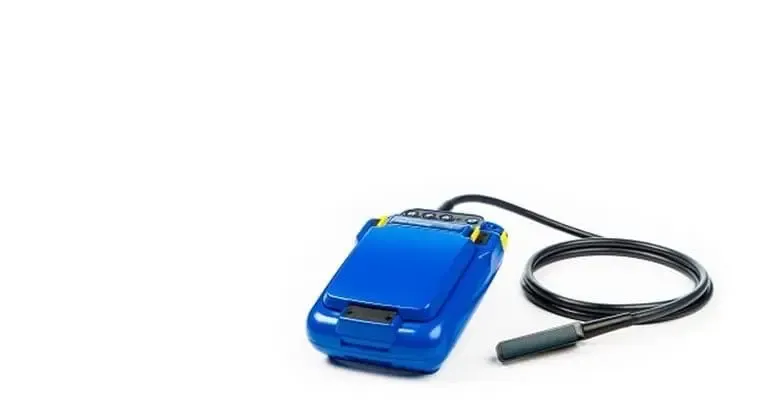

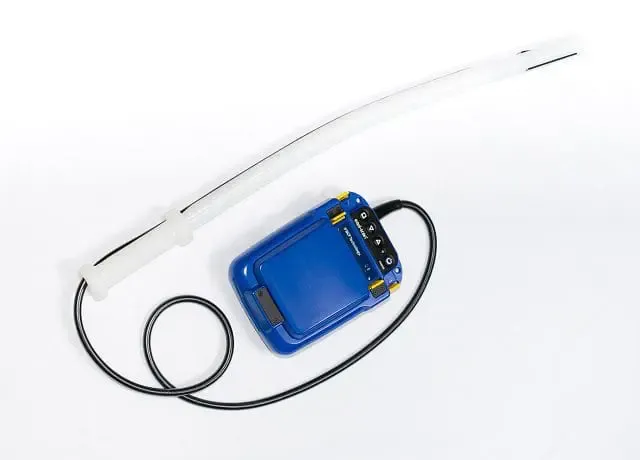

Easi-Scan Veterinary ultrasound scanner

Easi-Scan Veterinary ultrasound scanner

Ref. E4-Scanner-D

Portable Bovine Ultrasound

Ref. E4-Scanner-D

Overview

Meet Easi-Scan, the bovine ultrasound that set the market standard. Offering extreme durability with superb image quality for faster and more accurate pregnancy diagnosis. Don’t waste precious time fiddling with buttons, simply power on the cow scanner, plug in the goggles and you are ready to start pregnancy checking.

We understand your time is of the essence with herd checks, which is why our engineers built the Easi-Scan probe with 128 crystals and 40 frames per second. This achieves a crisp ultrasound image without any lag time. The Easi-Scan probe is sealed to prevent any dirt or water from interfering with the mechanics because our engineers understand on the farm, it’s a necessity.

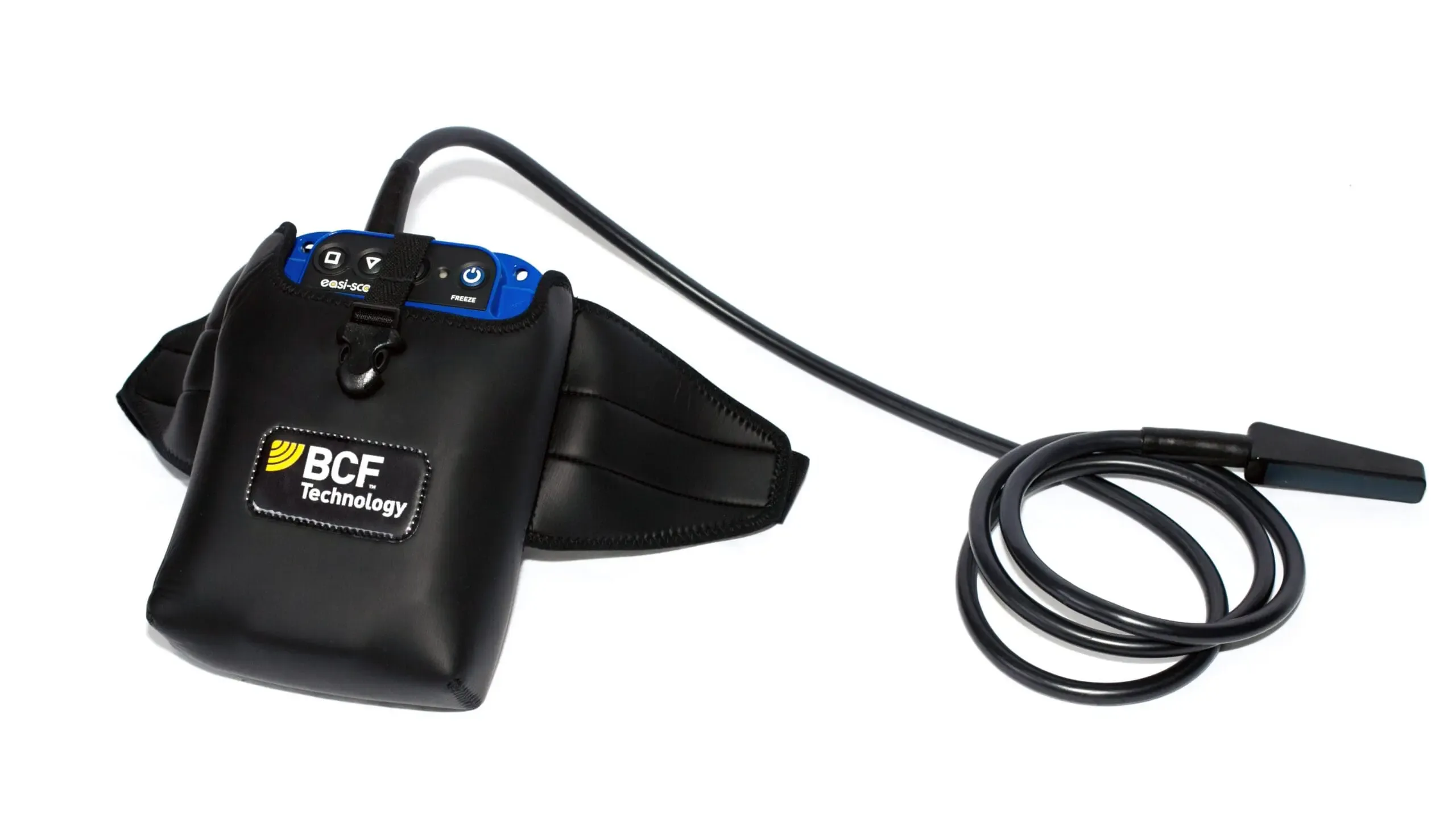

Portability and easy mobility are key when you’re scanning cows, thankfully the Easi-Scan only weighs 4 pounds and sits comfortably in a neoprene waste bag or can even go in a backpack. With input directly from farmers and veterinarians, our engineers designed Easi-Scan to be tough and reliable to meet the conditions you work in. Rain, sun, or snow, Easi-Scan is ready to go.

With Easi-Scan, scanning is simple, so you can focus on your work.

IMV imaging has been setting the standard in portable veterinary ultrasound scanners across the world for over 35 years. This is all because, with every new innovation, we turn to you, our customers, for direct input while creating the next best thing.

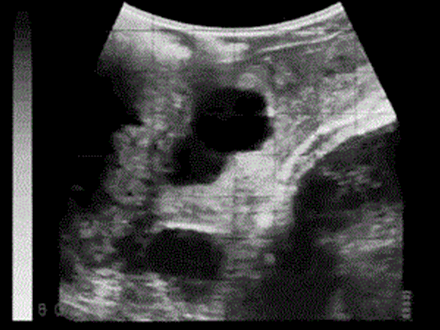

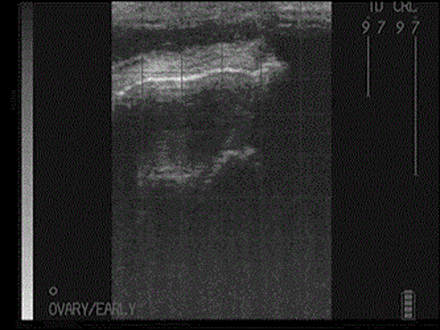

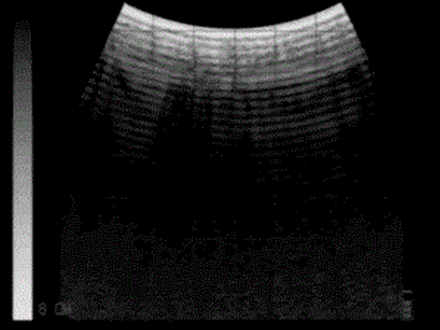

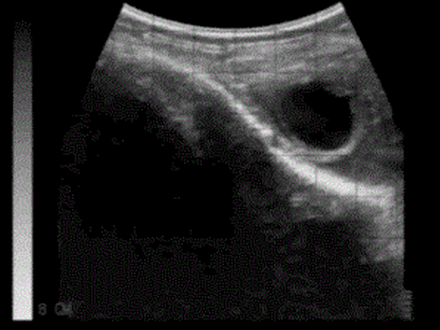

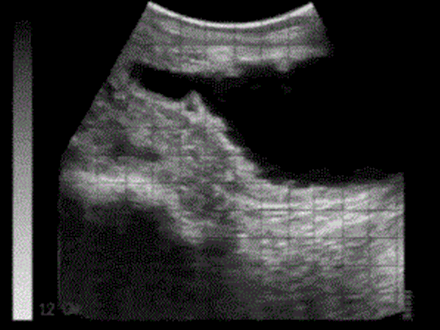

Clinical Images

Videos

video Easi-Scan Veterinary ultrasound scanner
video Easi-Scan Veterinary ultrasound scanner

Technical Specifications

Frequency 4.5 MHz - 8.5 MHz
Digital channels 16
Dust and splash proof
Storage capacity 100 images
Probe 128 element, 64mm active area
Chargin options Battery charger, in-vehicle charging
Battery capacity 4 hours, 7 hour on standby
Charging time 5 hours
Bovine Fertility, Pregnancy, Sex Determination, Non Reproductive Applications
Sheep Reproduction, Abdominal
Equine Reproduction, Musculoskeletal
Width (mm) 150
Depth (mm) 220
Height (mm) 70
Weight 2Kg, with battery
Temperature range -10 °C to 40 °C
IP standard IP65
Warranty 1 year
Manufacturer IMV imaging

Accessories

Easi-Scan Remote Display

A robust, remote, and wireless imaging solution More information

BUG hat mounting

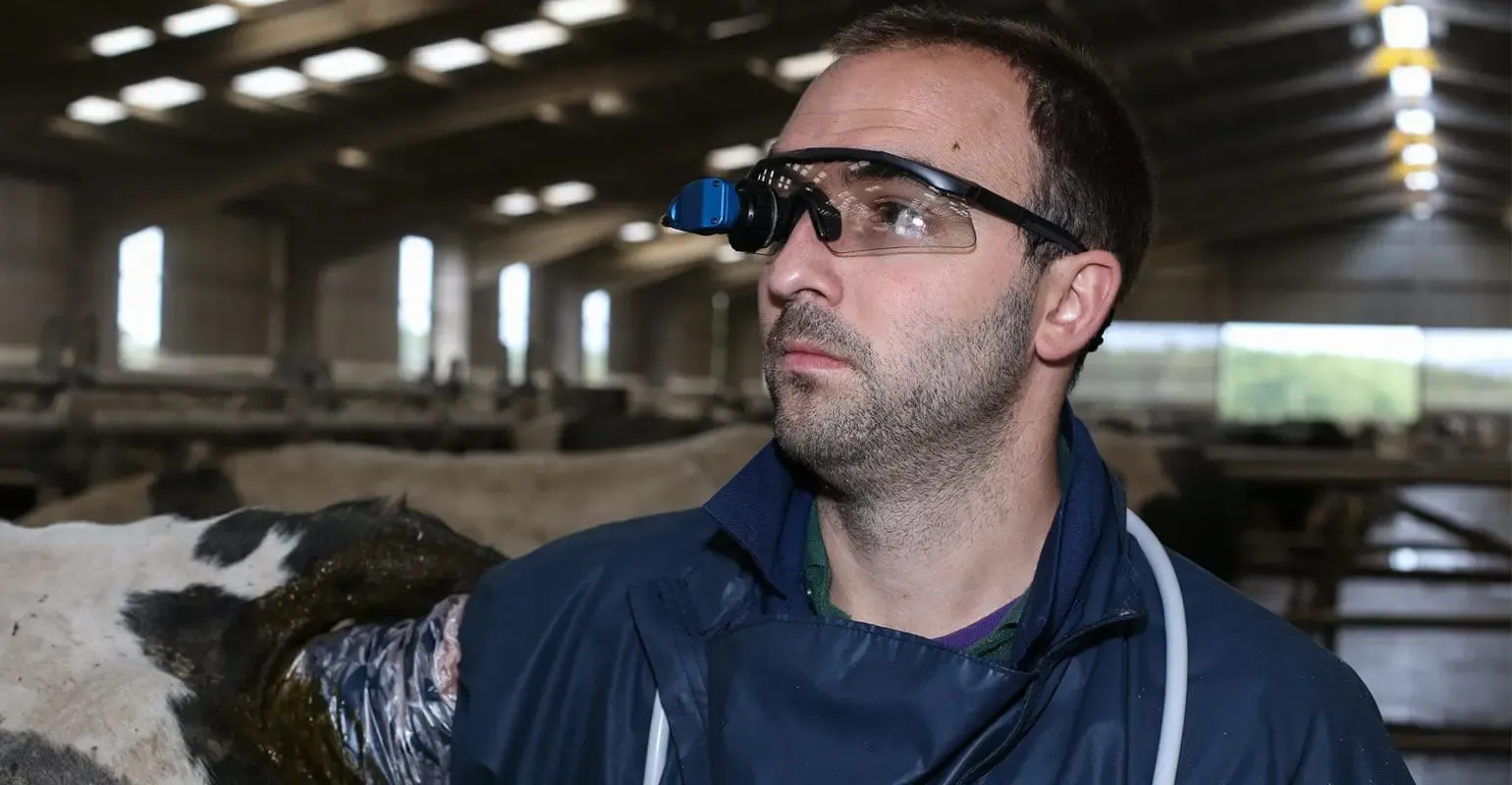

The BUG ultrasound goggles can be used comfortably with your bovine ultrasound machine. More information

Easi-Scan batteries

Complete a whole day of scanning hassle-free with your long lasting Easi-Scan batteries More information

FAQ

How long does the Easi-Scan probe last?

The life of the Easi-Scan probe is very dependent on the user and usage. With normal usage we have seen probes last more than 8 years. In the number of scans typical range is between 100,000 and 150,000.


Is the image quality better on the new Easi-Scan?

Yes. The image quality has been improved from the last Easi-Scan model. It is a clearer image and with the addition of contrast and brightness adjustments you can adjust the image to suit your needs.


What are the advantages of the Easi-Scan over older Easi-Scan models?

There are many benefits and new features that were released with the newest Easi-Scan. Read below to learn more:

  • Weighs only 4 lbs
  • Over 50% smaller than previous models
  • Longer battery life
  • Standby mode detects when you are not scanning and puts the Easi-Scan on standby mode to extend your battery life up to 7 hours
  • Waist bag to lessen shoulder strain
  • Dust and splash-proof
  • Improved image quality
  • Battery life indicator
  • Easily store and transfer images
  • Menus available in multiple languages
  • Lifetime Warranty, just send your machine in once a year
  • BCF manufactures and repairs
